Its lightness is unimaginable from its rugged appearance.
The handle is the most powerful handle ever made, with sensitivity and torque taken to the extreme.
In the face of monsters, we have created a handle that gives anglers an unparalleled advantage.

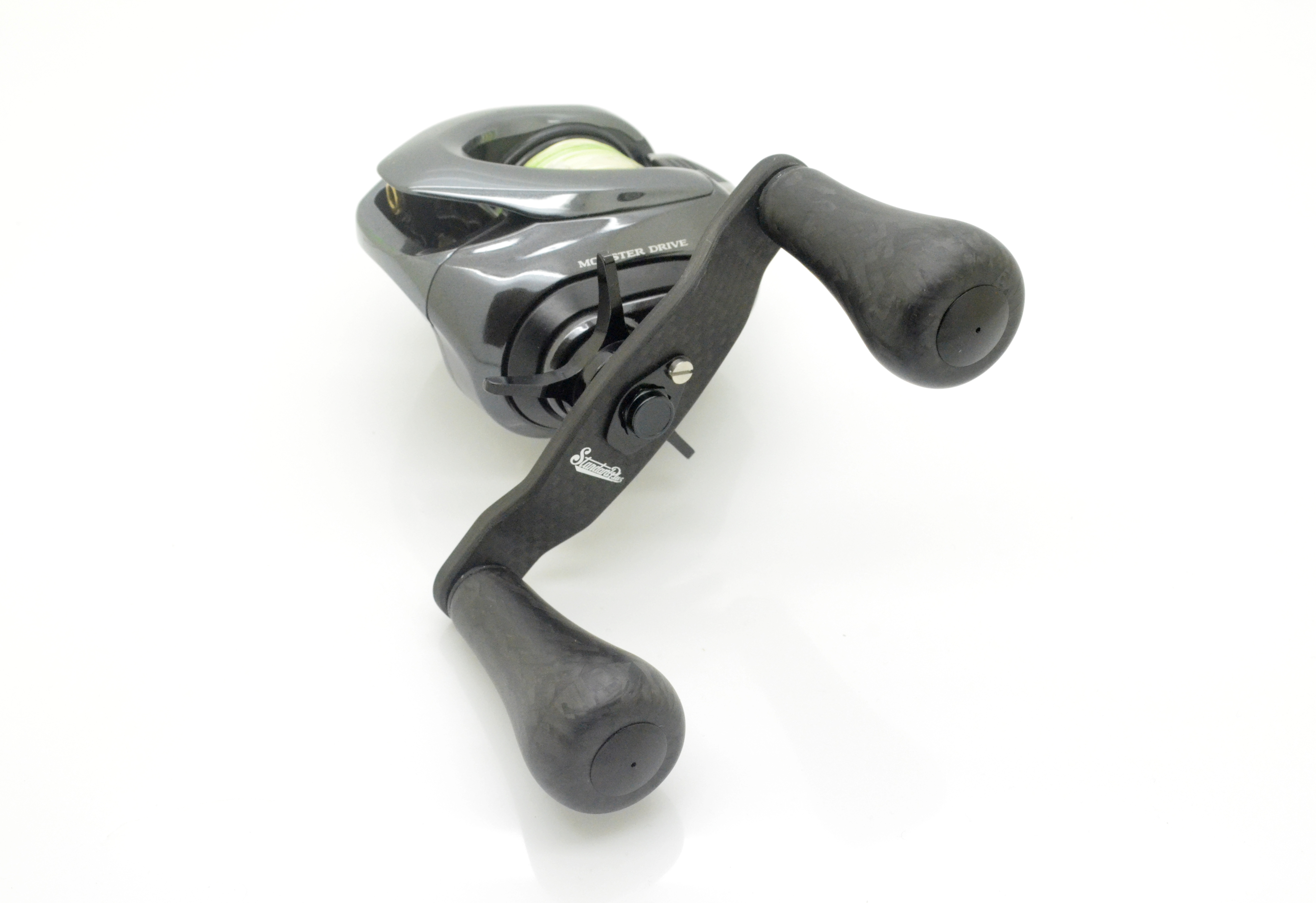

That is the "RC-SC EX" series.
← 横スクロールしてください →
| Functions | Type | Color | Price |
|---|---|---|---|
| 88mm R27XL Monocoque carbon knob |
|
|
¥20,000＋tax |
| 92mm R27XL Monocoque carbon knob |
|
|
¥20,000＋tax |
| 96mm R29XL Monocoque carbon knob |
|
|
¥20,000＋tax |
| 102mm R29XL Monocoque carbon knob |
|
|
¥20,000＋tax |
| 108mm R29XL Monocoque carbon knob |
|
|
¥20,000＋tax |
| 96mm R29XXL Monocoque carbon knob |
|
|
¥20,000＋tax |
| 102mm R29XXL Monocoque carbon knob |
|
|
¥20,000＋tax |
| 108mm R29XXL Monocoque carbon knob |
|
|
¥20,000＋tax |
Can be attached to most Shimano, Daiwa, and Abu reels. (Special nuts compatible with each manufacturer are provided as standard.)
*SOME REELS AND DAIWA C-BOLT TYPES (STEED, JILLION, RYOGA, Z, MOAZAN, etc.) REQUIRE A SEPARATE C-BOLT.

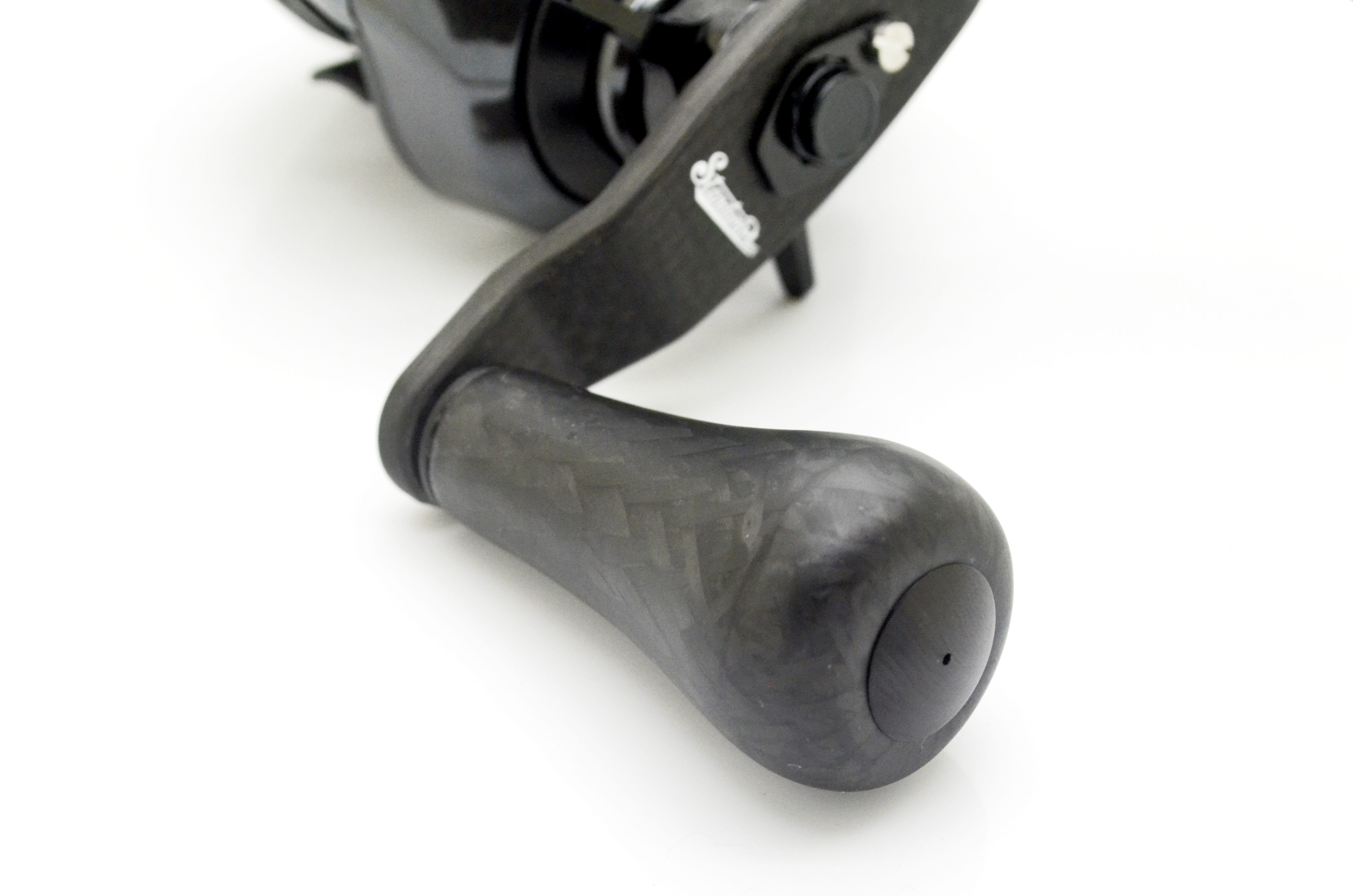

01Handle knob
A monocoque (hollow structure) is used to achieve light weight, high rigidity, and extreme sensitivity.
Carbon tubing was used for the carbon knob and inner parts without compromise.
In addition, by coating the carbon knob with matte rubber, we succeeded in increasing its gripping power.
It will accurately transmit signals from underwater with ultimate sensitivity never seen before.
02plate (often as in "tectonic plate")
The RC-SC EX has a 5mm strong carbon plate for torquey handle operation.
The carbon fibers are composed of 45° and 90° carbon fibers to provide strength to withstand torsional loads from all directions.
Furthermore, by adopting a crank shape that suppresses torsion and using carbon prepreg for the plate, we have achieved rigidity that could not be achieved before.

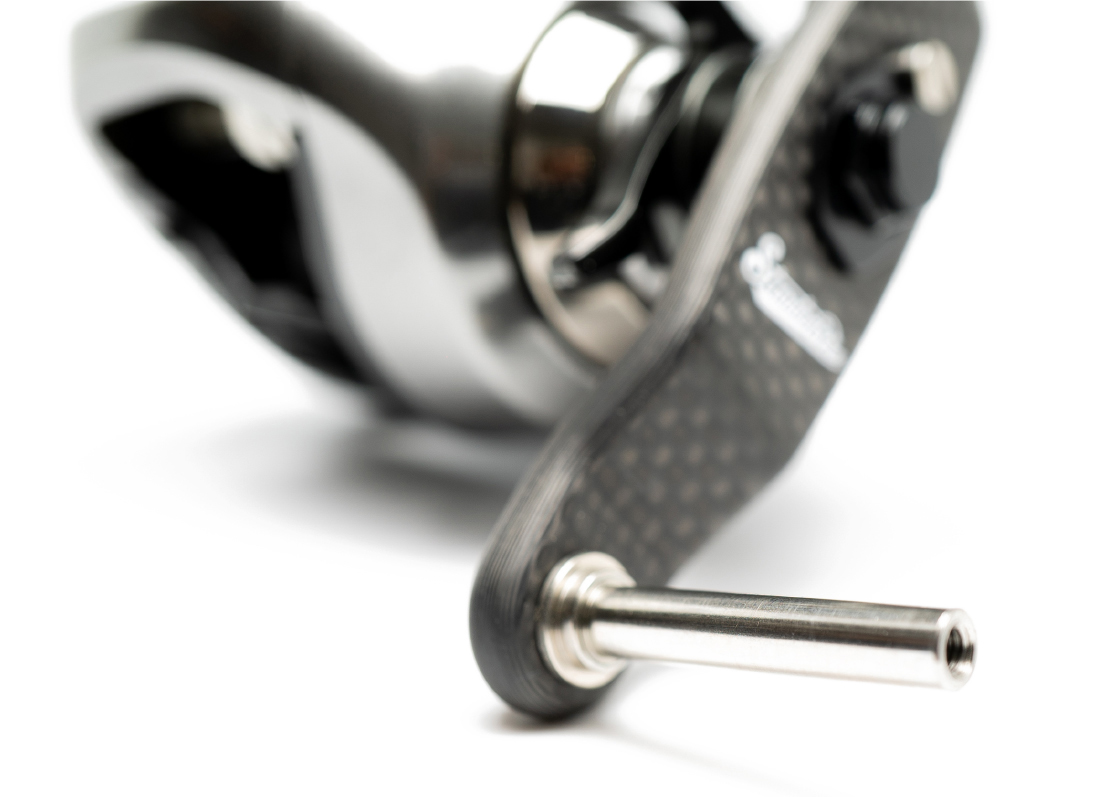

03shaft
Instead of using the 4Φ shafts installed in freshwater reels, a tough 5Φ SUS shaft for saltwater use is used.
By making the carbon plate 5mm thick, the load is concentrated on the conventional shaft size, which would result in damage.
Therefore, by increasing the rigidity of the shaft, the power balance of the entire handle is evened out and overall rigidity is increased.

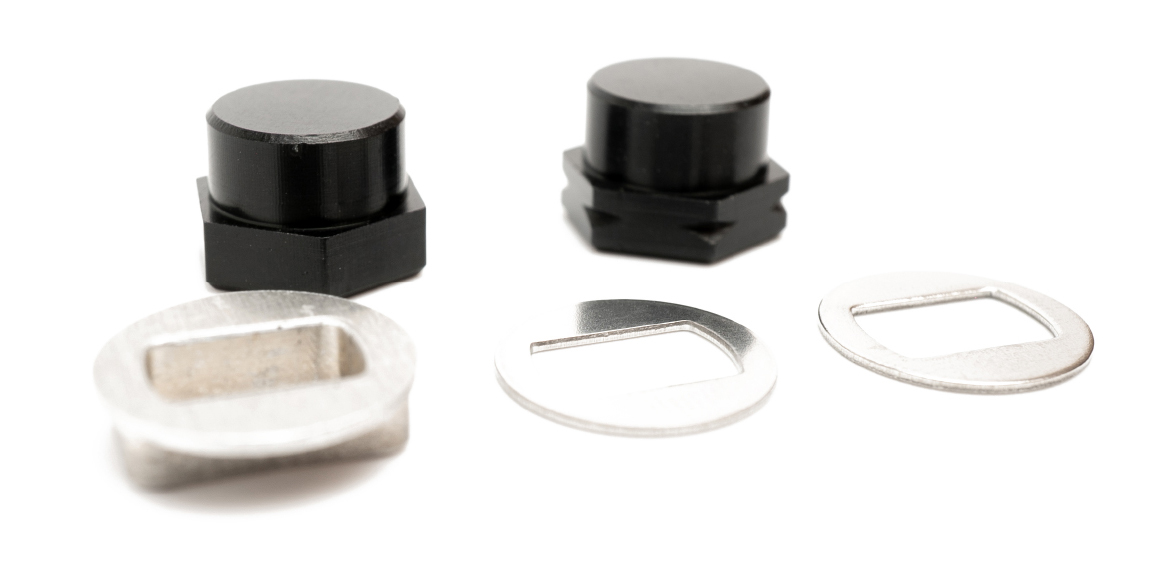

04accessory
A shared washer for [for Shimano] and [for Daiwa and Abu] and a special nut left and right are included.
*For some Daiwa reels, C-bolts must be purchased separately. (Refer to the compatibility chart)
